Thermic Industries can provide Water Tube Steam Boilers with a boilers in the range of 2MW - 35MW.

Click here for TECHNICAL INFORMATION

Please contact Thermic Industries for further technical information.

(Click photo for larger view)


Austin Health Incorporate Site: Heidelberg Repatriation Hospital, Victoria Australia Thermic 2 x 6MW Steam Boilers Complete Packaged Steam Plant

TECHNICAL DATA

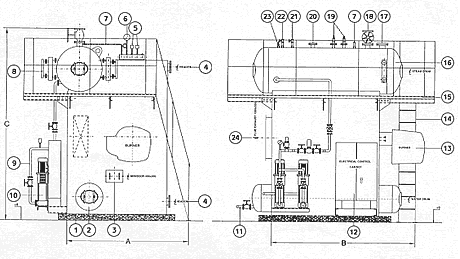

1) Concrete plinth
2) Water drum
3) Mandoor
4) Header
5) Pressure relay
6) Pressure gauge
7) Steam piping into pressure gauge
8) Water level gauge
9) Feed water piping system
10) Feed water pump
11) Blowdown piping system
12) Electrical control cabinet

13) Burner
14) Ladder
15) Flatform
16) Steam Drum
17) Level Float
18) Steam out
19) Safety Valve
20) Auxiliary steam out
21) Ventilating valve
22) Steam piping into feed water tank
23) High level control probe
24) Flue exhaust

Model	W150	W200	W300	W400	W500	W600
Capacity MW	1.5	2.0	3.0	4.0	5.0	6.0
Horsepower	150	200	300	400	500	600
Evaporation Kg/Hr f & a 100 0 C	2300	3000	4600	6000	7500	9000
L.P.G. Lt/Hour	250	340	506	685	850	1013
Diesel Oil Lt/Hour	141	192	286	387	481	573
Heating Surface (sq m)	42	56	84	112	141	168
Main Steam Outlet	65	80	80	100	150	150
Feedwater Inlet	25	32	40	40	40	40
Safety Valve	25	25	40	50	50	65
Blowdown Valve	40	40	40	40	40	40
Flue Diameter (mm)	350	400	450	500	600	800
DIMENSION(MM)
Overall Height C	4110	4110	4110	4110	4110	4110
Overall Width A	2890	2890	2890	2890	2890	2890
Overall Length B	2600	2870	3000	3450	4400	6100
